Construction design documentation system
EXECUTION RULES OF WORKING DOCUMENTATION FOR STRUCTURAL DESIGNS
On this page we represent samples for Reinforced Concrete Structure section by Russian standard.
Floor plans
Parts and components

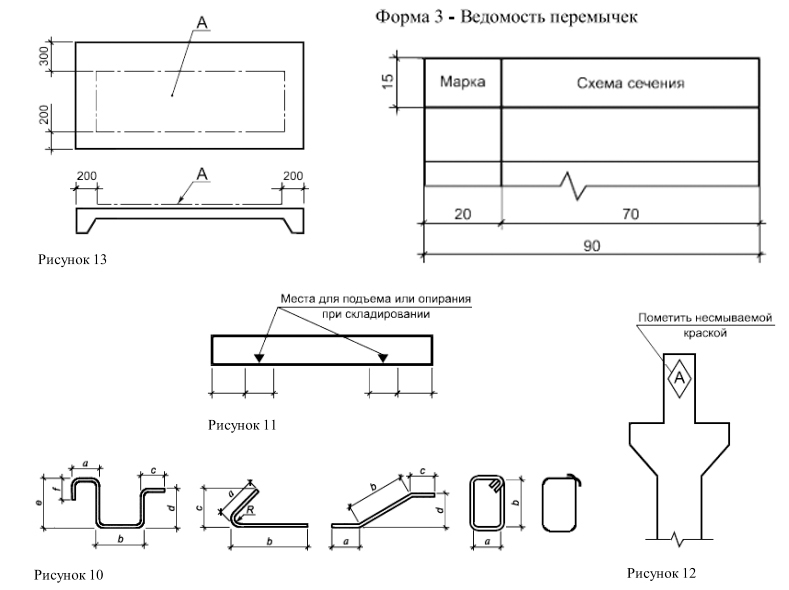

Lintels list

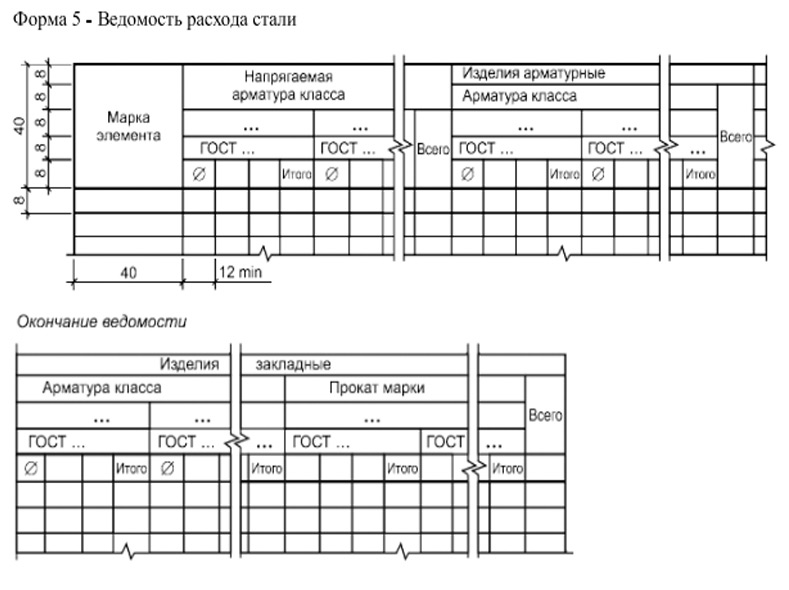

Steel consumption sheet

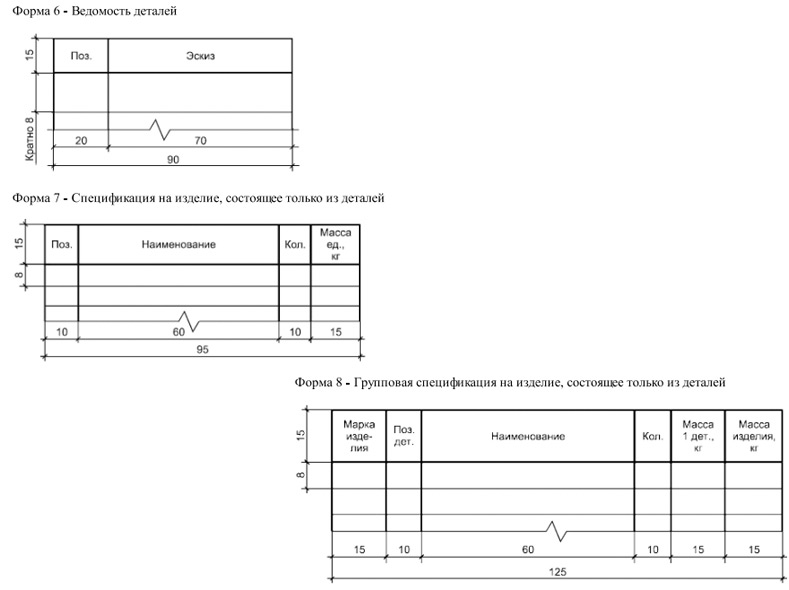

Parts List and Product Specification
Example of building plans
Example of plans for an industrial building
Example of section views
Example of facades
Floor and roof plans

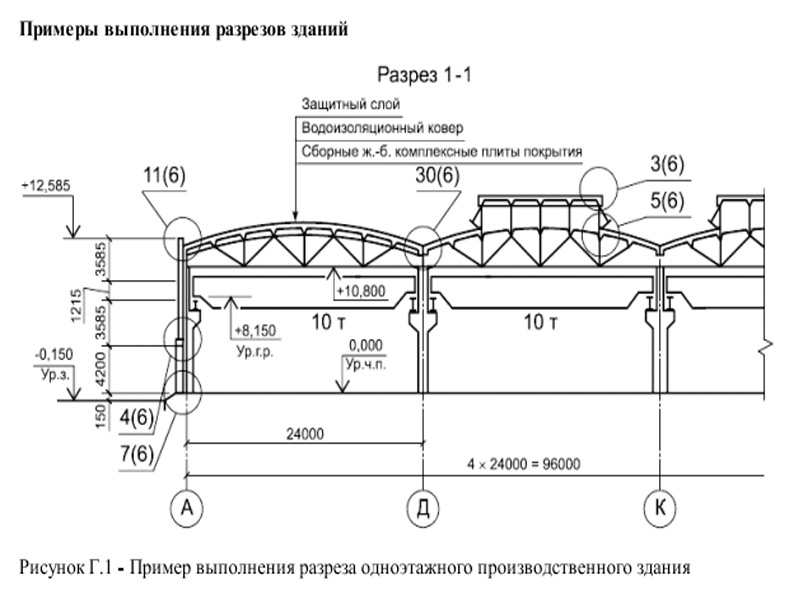

Example of building sections

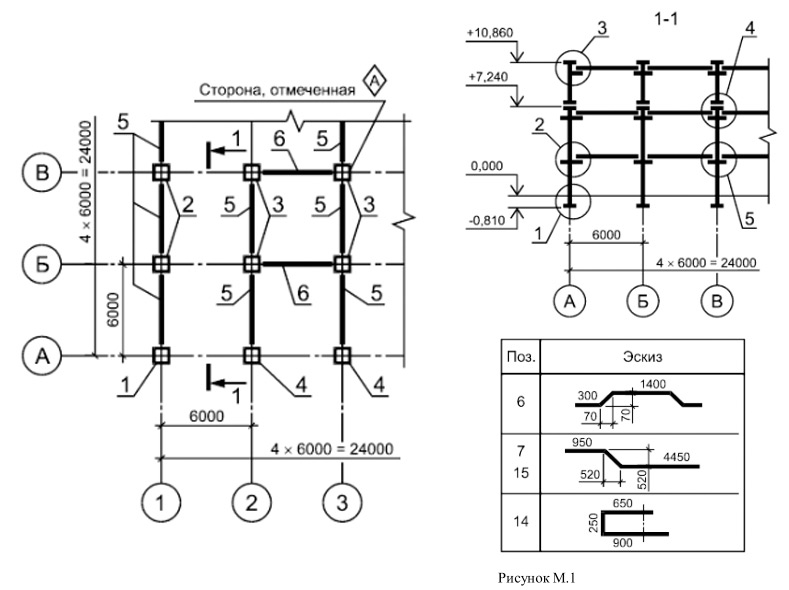

Layout of elements of prefabricated structures

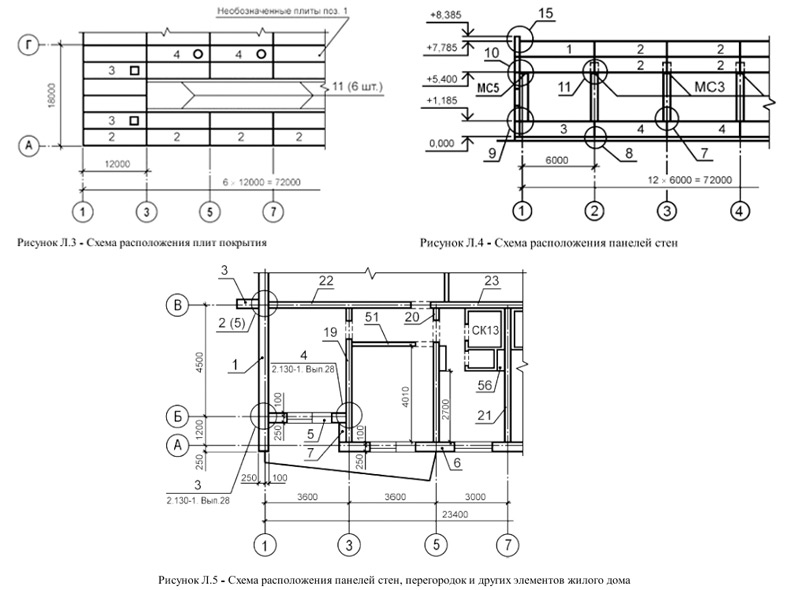

Layout of floor slabs and wall panels
Layout of floor slabs and wall panels
Steel consumption sheet

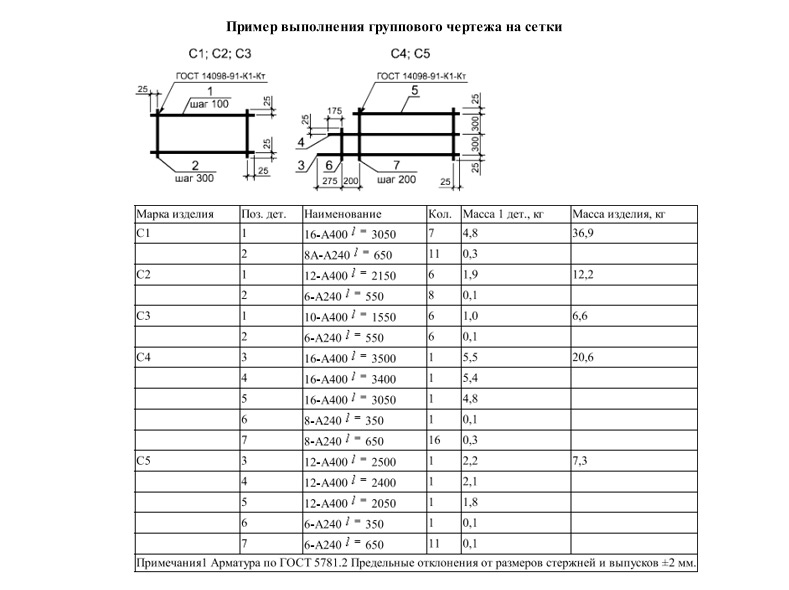

Group drawings on grids

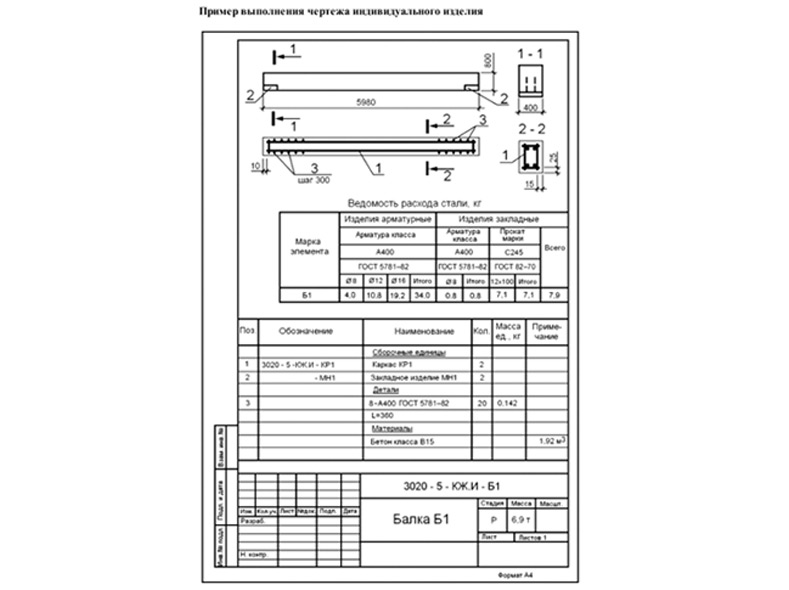

Drawing of an individual product

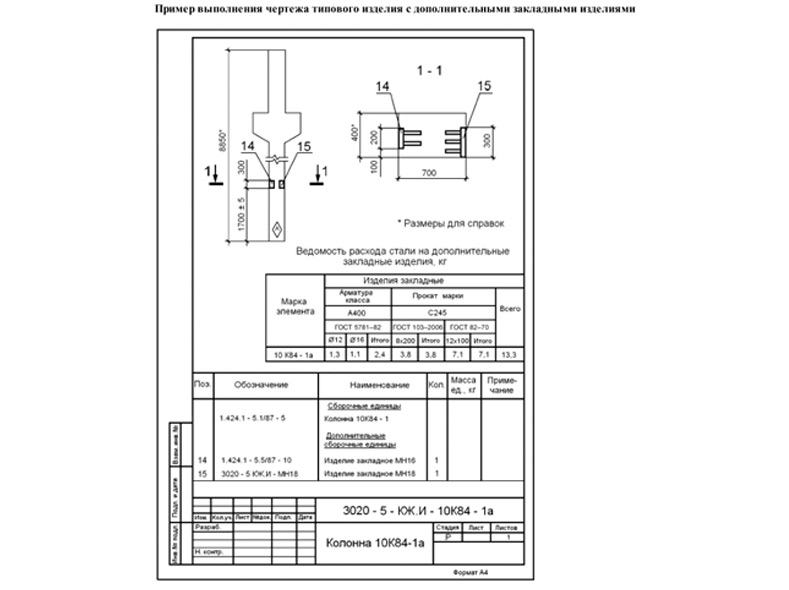

Typical product drawing
Design samples of Reinforced Concrete Structure section by Russian standard. Examples in PDF format (available for downloading and printing)
