EXECUTION RULES OF WORKING DOCUMENTATION FOR HVAC
On this page we represent samples for HVAC design section by Russian standard.

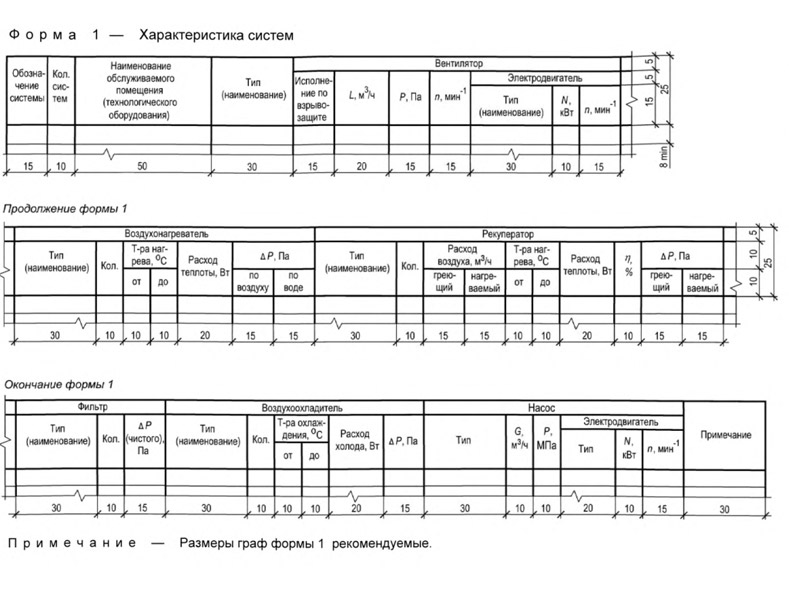

Form 1 - Characteristics of systems
Form 2 - Main indicators of air conditioning systems

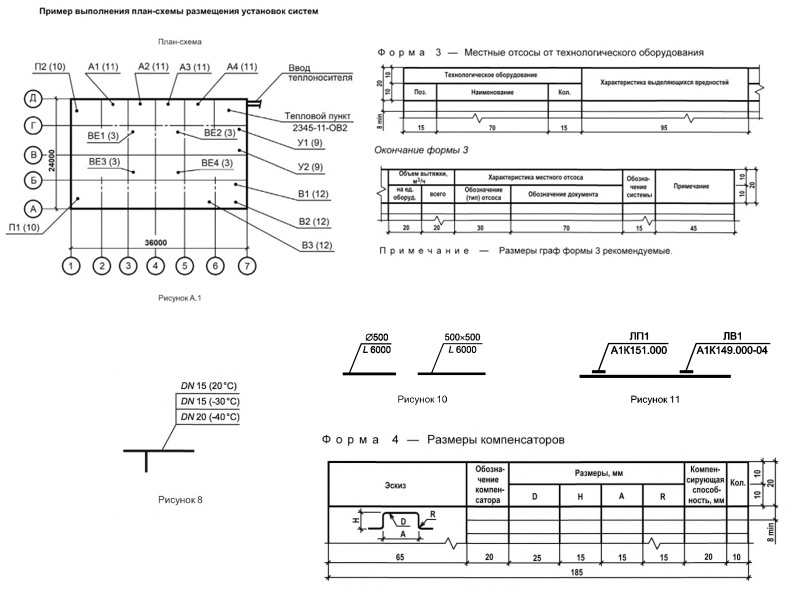

An example of a layout plan for system installations

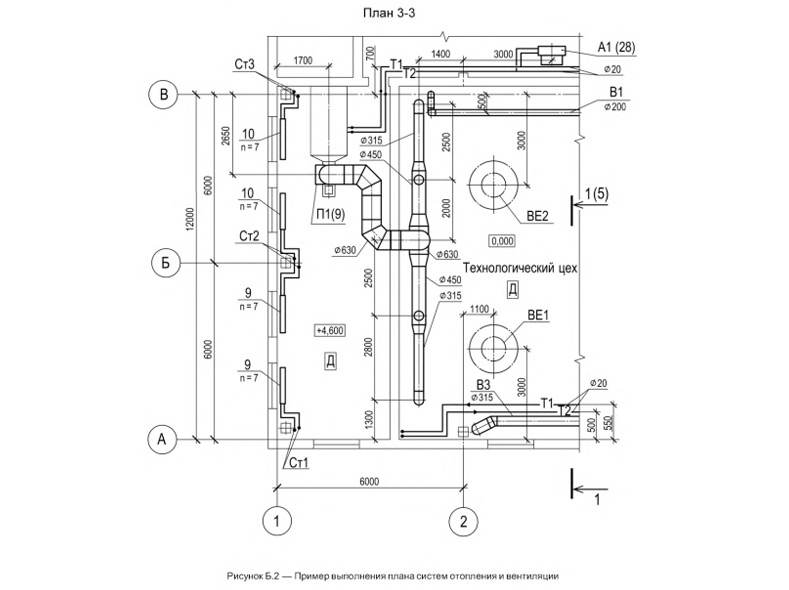

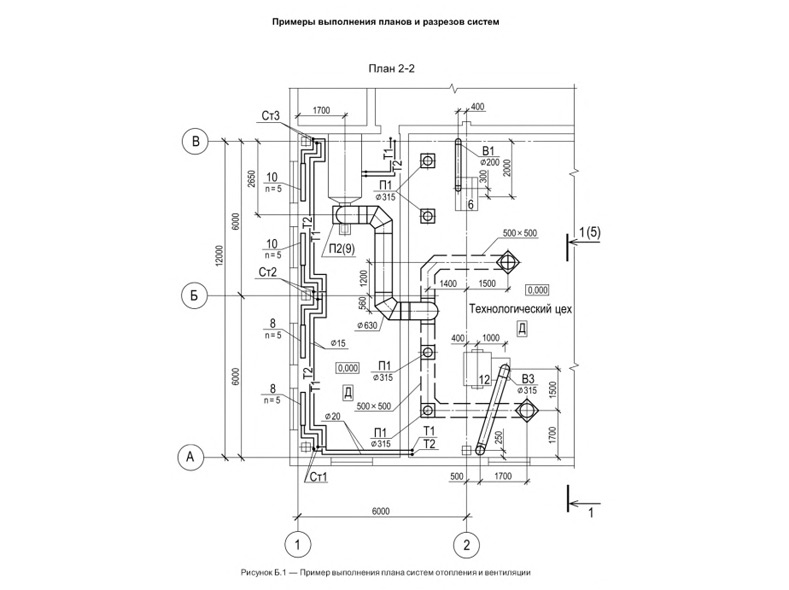

Examples of plan implementation
Section view examples
Section examples

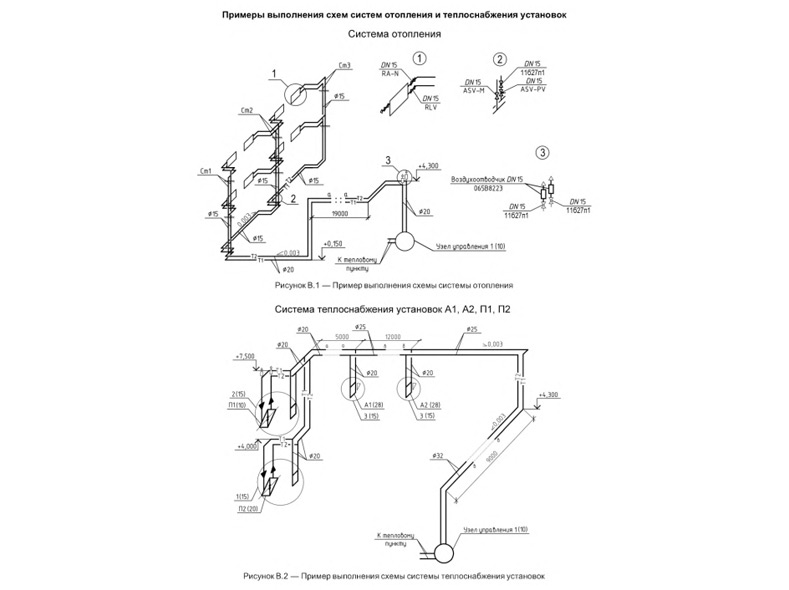

Examples of circuit diagrams for heating systems and heat supply installations

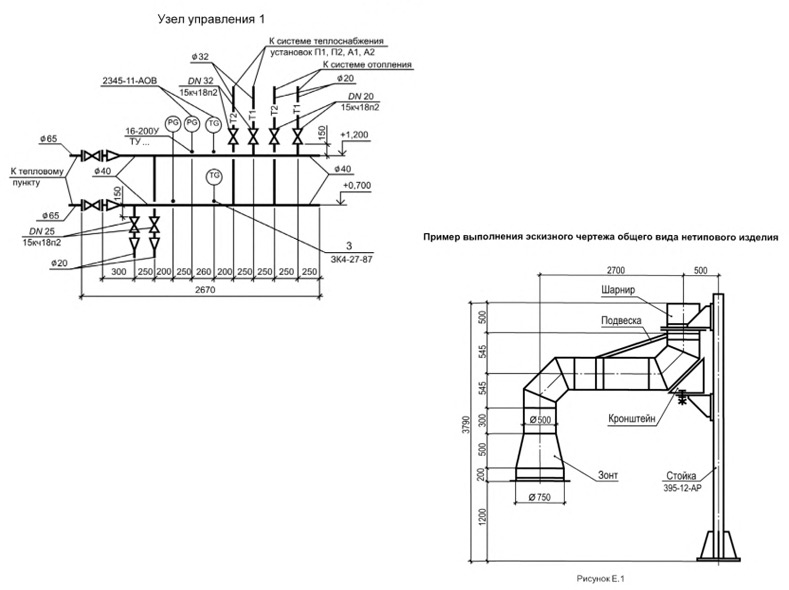

Control unit diagram example for heating systems and heat supply installations

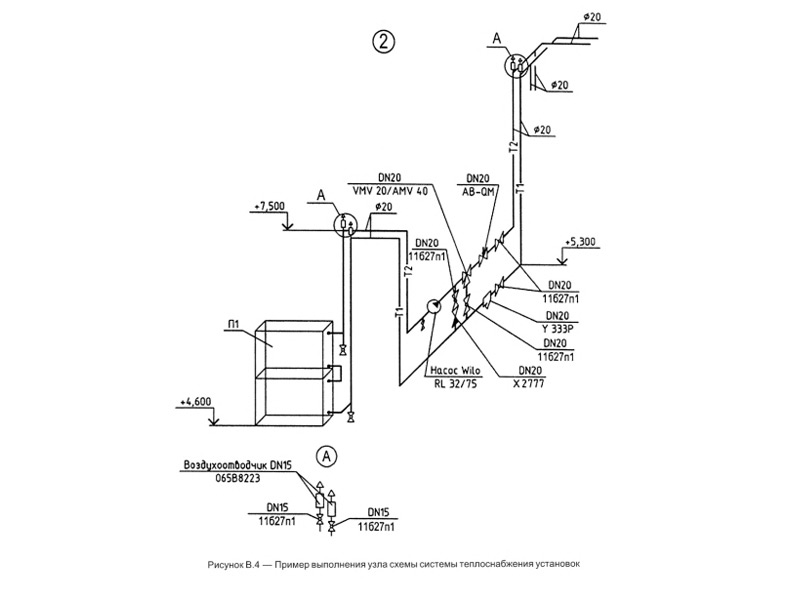

An example of a unit diagram for heat supply system installations

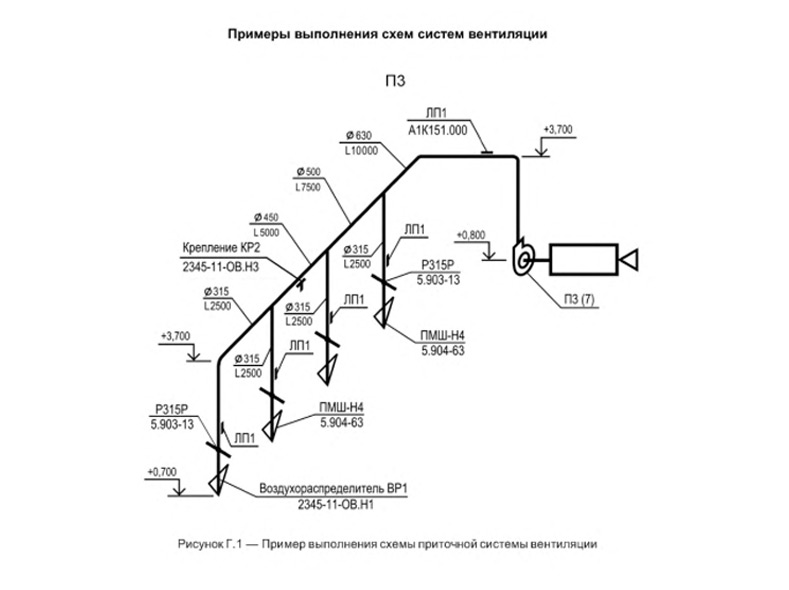

An example of a supply ventilation system diagram

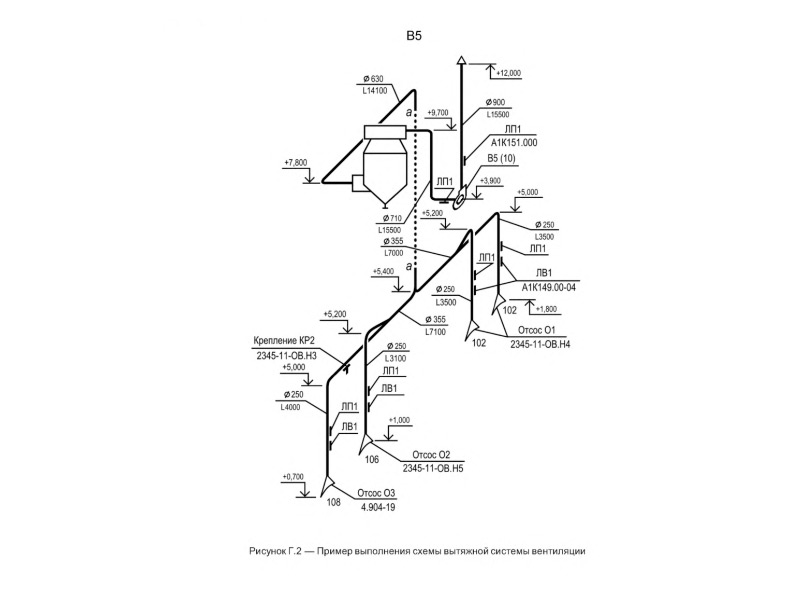

An example of an exhaust ventilation system diagram

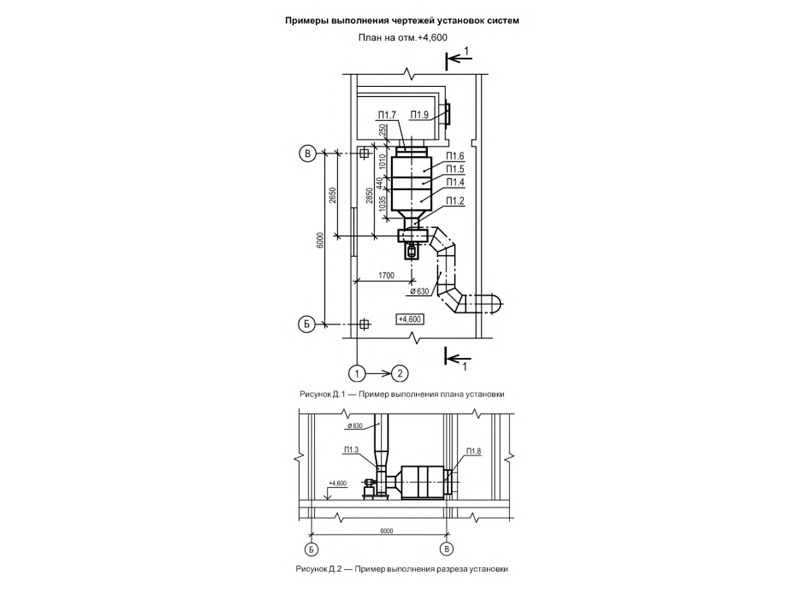

Examples of system installation drawings
Samples of design of the HVAC section by Russian standard. Examples in PDF format (available for downloading and printing)
